贷款用途与简绍/Brief Introduction：

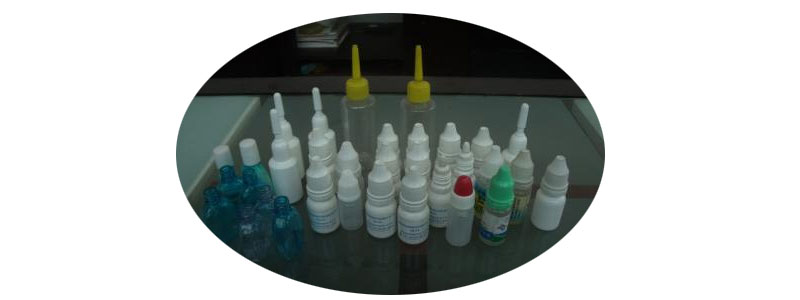

该机选代替2-30ML各种类型木头材质的半圆形扁形氟塑料或玻璃钢瓶的眼灵药包装线线、电子元器件烟油等小残留量包装线线.该机由高计算精度气缸精度等级培训机构展示 精度等级等分盘精密定位系统上塞上盖;促使度气缸传动系统链展示 旋盖头的起降;恒扭距旋盖;消化泵计量检定检验包装线线;接触屏保持.无瓶不包装线线,要加内塞,外盖.具精密定位系统精密,传动系统链保持稳定,守护小盖,计量检定检验准.的操作方便等的优点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

的特点/Characteristic：

◆微PC设置、装量精确度高、进行不便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆监控主机转动速度可采取无级变速交流变频调节。the mainframe running speed is stepless frequency conversion.◆制作量系统自动酶联免疫法管控。the product quantity can be controlled. ◆各种故障问题显示性能(如低空气压力。无罐装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆全自行暂停服务基本功能，对同一个轨道组件出显间隔无罐装、无内塞情况下可全自行暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术水平基本参数/Main Technical Parameters：

可用于规格型号Filling Volume	2-30ml
生产制造专业能力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装灌定位精度Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
系统自动上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
工率 Power	2.0 kw
广州POS机毛重Weight	550 kg
外观简约时尚规格尺寸Dimension	1800*1000*1500mm
