使用用途与百科/Brief introduction：

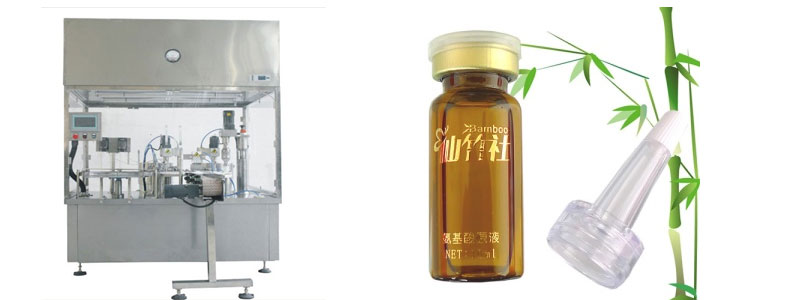

超声波焊接机是在扶持和吸纳欧洲现进科技的基础上上，我企业综合性研发团队的这款工程专业根据西林瓶的装灌、上塞、旋（轧）盖机。超声波焊接机进行日式全进囗的高精准度封闭型式凸轮轴度数车间工作台器，精准度不高，作业可信度，应用蓄电量长。该度数器组成部分简单的，经常性应用必须维修费。机器关键使中用几种小极量液态的包装、压塞及旋（轧）盖，如复方精油、注塑剂等。宽泛中用食品厂、药业、煤化工层面及教育科研层面。什么是服务器既可单机游戏产生，又可与洗瓶机、吹干机等机械组合成三级联动产生线。压根完全符合国GMP规范。机器能能会根据客人规范持续机电设置。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

特别/Characteristic:：

◆人与机器画质选用、运营客观事物便宜、PLC管控，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆变频柜有效控制、生產快速任何设定、智能计数法。Frequency control, the production rate be adjusted automatically count  ◆自动的停止设备运转工作，无瓶不装灌。No bottle no filling.◆园盘固定式灌装生产线，相对稳定靠普。Disc positioning filling, stable and reliable.◆高抑制精度凸轮轴度数计抑制，导航定位*。High-precision cam meter control, precise positioning.◆用到SUS304及316L不锈钢装饰管生产制造，充分遵循GMP的标准。SUS304 and 316L stainless steel, full compliance with GMP requirements.

技術产品参数/ technical parameters：

装量范畴Filling volume	5-50ml
装量精度loading error	≤ ±1%
旋（轧）盖合格证率 Rotation (rolling) Cover pass rate:	≥99%
生产的学习能力Production capacity	30-60瓶/分 钟  低速度 7𓃲0-100瓶/分&nb🎉sp;钟     快速 30-60 bottle🅰s / min  70-100 bottles / minute (high speed)
压塞率Tamponade rate	≥99%
电压 Power	380V/50Hz
工作电压Power	2.0 kw
工具毛重Net weight	600 kg
外表尺寸 Dimension	2000*1000*1500mm
