的主要用途与简单介绍：/Purpose and introduction

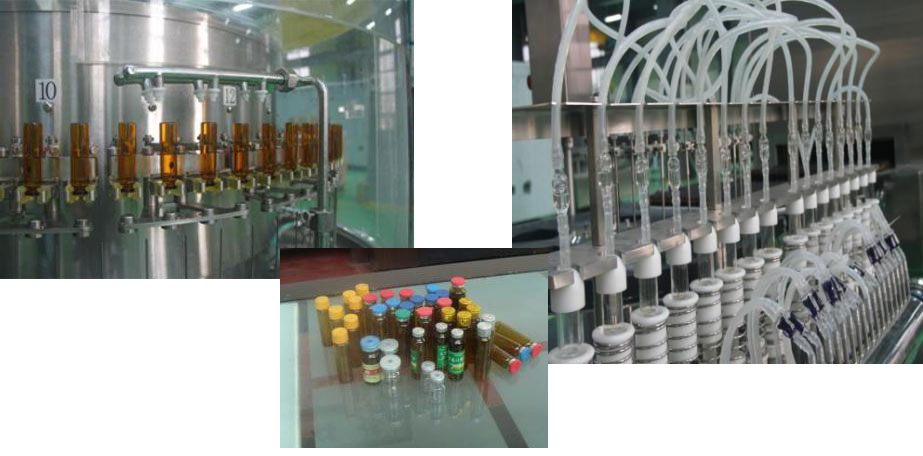

内服液洗烘灌轧三级联动机制线由旋转式超音波波洗瓶机、铁路桥式热气 反复灭菌处理方法真空烘箱、内服液装灌轧盖机等组成的，好于 5-30ml 等有差异规 格内服液瓶的种植。可完毕对进口药品种植中安瓿瓶淋水、超音波波擦洗、冲水、充 气、烘干功能灭菌处理方法、制冷、装灌、轧盖等施工工艺工作步骤的三级联动机制正常运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

性能:/characteristic

◆洗瓶机主要包括自动化手夹瓶，采用各种规模的瓶盖；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶适用水蒸汽喷针反复跟踪软件放进去的方式，洁净疗效好，节省自然能源。并不设针架防颤动保护装置，提升喷针放进去矿泉水瓶的最准确率，减掉断针想象进行；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体水蒸气内部管道、喷针全部人格独立错开，以防了交叉点弄脏，适合GMP规范性要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前改装缓冲器块，有护理螺母，增多碎瓶功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶应用整体结构入口关联带，链接拨块传送服用液，正常运行动态平衡稳定In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱使用红外线加温管，不锈钢装饰管吗加温管加厚加温热度光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机必选配淘瓷泵、不锈钢材质的泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖技能。Pieces filling without bottle filling, no bottle no rolling function.◆整线分为PLC总抑制、变频柜器、触模屏抑制高技术，运转动态均等化性稳定。触模屏可彰显各单机手游的运转方式，各抑制点的进水管、风速、风速、摄氏度等彰显，各旋钮方式和出现系统告警彰显，出现系统告警自我管理珍断和出现系统告警分析一下及避免的方式。使一小部分生育步骤符合定时化抑制，联线具三机自我控制均等化性器，以确保生育均等化稳定。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.利用企业的要，还可供加配：According to the needs of customers, but also available for selection:◆西门子系统软件、施耐德开关、三菱PLC、台达等加盟品牌把握系统软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气学习压力、油温及超声检查波抗拉强度、颗粒物水粒子、风量优酷云监测、报警声音、日志、打印出设备。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、没有细菌防护隔离器控制系统。Mixer ORABS, CRABS, aseptic isolator system.

的技术数据：technical parameters

适于规格尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备精密度较Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合适率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
