妙用与简单：Purpose and introduction

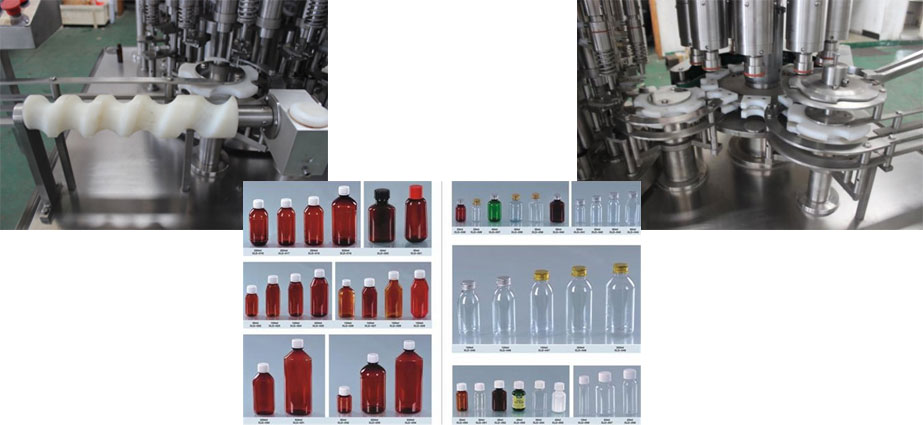

机器适合于对30-500ML品类玻璃板瓶、材料瓶的装灌的设备封好。实现往来账户交往式活塞环实现装灌的设备，电滋谐振送盖，能够轧盖(重金属式)或旋盖(材料盖)封好，能够和前后的的生產道工序的设备连接方式构成的生產线，还有就是能够购选百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特征 ：characteristic

装量更准，杜尽漏滴。缺瓶不分装。 变频式控速。 活跃提示 记数功用。 设备均按GMP让方案。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

系统数据/technical parameters：

型号 model	NQGX30-500
不适用品种Cutting dimension	30-500ml
生产出来特性Production capacity	80-200瓶/分（罐/15分钟）80-200 bottles/min (cans/min)
装灌精确度 Filling accuracy	≤±1%
外接电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械设备重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
